How do I configure the API Key in n8n?

Go to Credentials → New Credential → Invoice-api.xhub API. Enter your API Key (sk_test_* for testing, sk_live_* for production) and the Base URL https://service.invoice-api.xhub.io

Why does my XRechnung validation fail with VAT ID errors?

Ensure seller and buyer VAT IDs follow the correct format (e.g., DE123456789 for Germany). The API validates VAT ID format and check digits.

How do I pass binary data (PDF/XML) to the parser node?

Use inputType 'binary' and set binaryPropertyName to 'data'. The previous node must output binary data (e.g., from an HTTP Request or Read File node).

The node times out during PDF generation. What can I do?

Increase the node timeout in n8n settings. ZUGFeRD PDF generation can take 5-10 seconds for complex invoices. Set the HTTP timeout to at least 30 seconds.

Which e-invoice formats are supported?

XRechnung 3.0.2, ZUGFeRD 2.5, Factur-X 1.09, FatturaPA, Facturae, UBL (Peppol BIS 3.0), ebInterface, ISDOC, NAV, KSeF, SAF-T, eFactura, qr-bill, and myDATA. 37 countries supported.

Docs/Integrations/n8n

n8n Integration

Name: n8n-nodes-invoice-api-xhub
Author: xhub.io

Community Node Available

Open-source workflow automation with self-hosting option. Perfect for privacy-sensitive e-invoice workflows.

GitHub

VIDEO WALKTHROUGH

Automate e-invoicing with n8n

Step by step: install the community node, add your API key, and generate XRechnung & ZUGFeRD straight from your n8n workflow.

Available · Live

Community Node Now Available

The official n8n-nodes-invoice-api-xhub Community Node is now available in the n8n Community Node Registry. Install it directly in n8n and start automating e-invoices immediately.

Ready-Made Workflow Templates

7 Templates

Production-ready n8n workflows for direct import. Each template includes JSON workflow, documentation, and example data.

Your departments write invoices in Word or Excel and send PDFs? Template 06 reads them from one mailbox per department and turns them into ZUGFeRD or XRechnung — no LLM involved. What typically fails along the way is in the guide From PDF invoice to e-invoice.

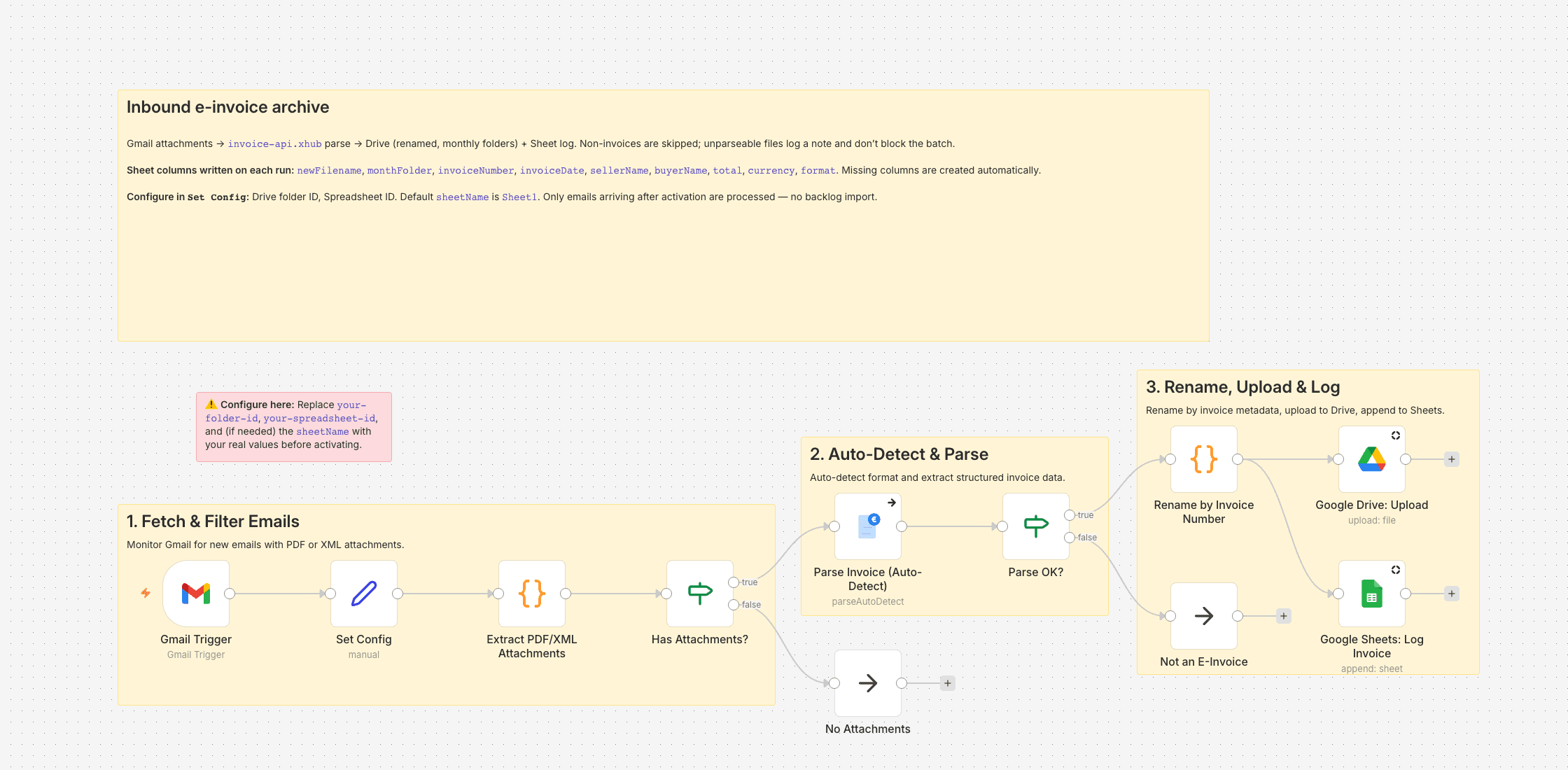

Archive inbound e-invoices from Gmail to Drive (with a searchable sheet log)

When our team passed 50 people, the supplier-invoice flow turned into a problem I couldn't keep ignoring. I'm Head of Finance at a software company; XRechnung XML from IT contractors, PDFs from the hosting provider, a…

5 min setupView template

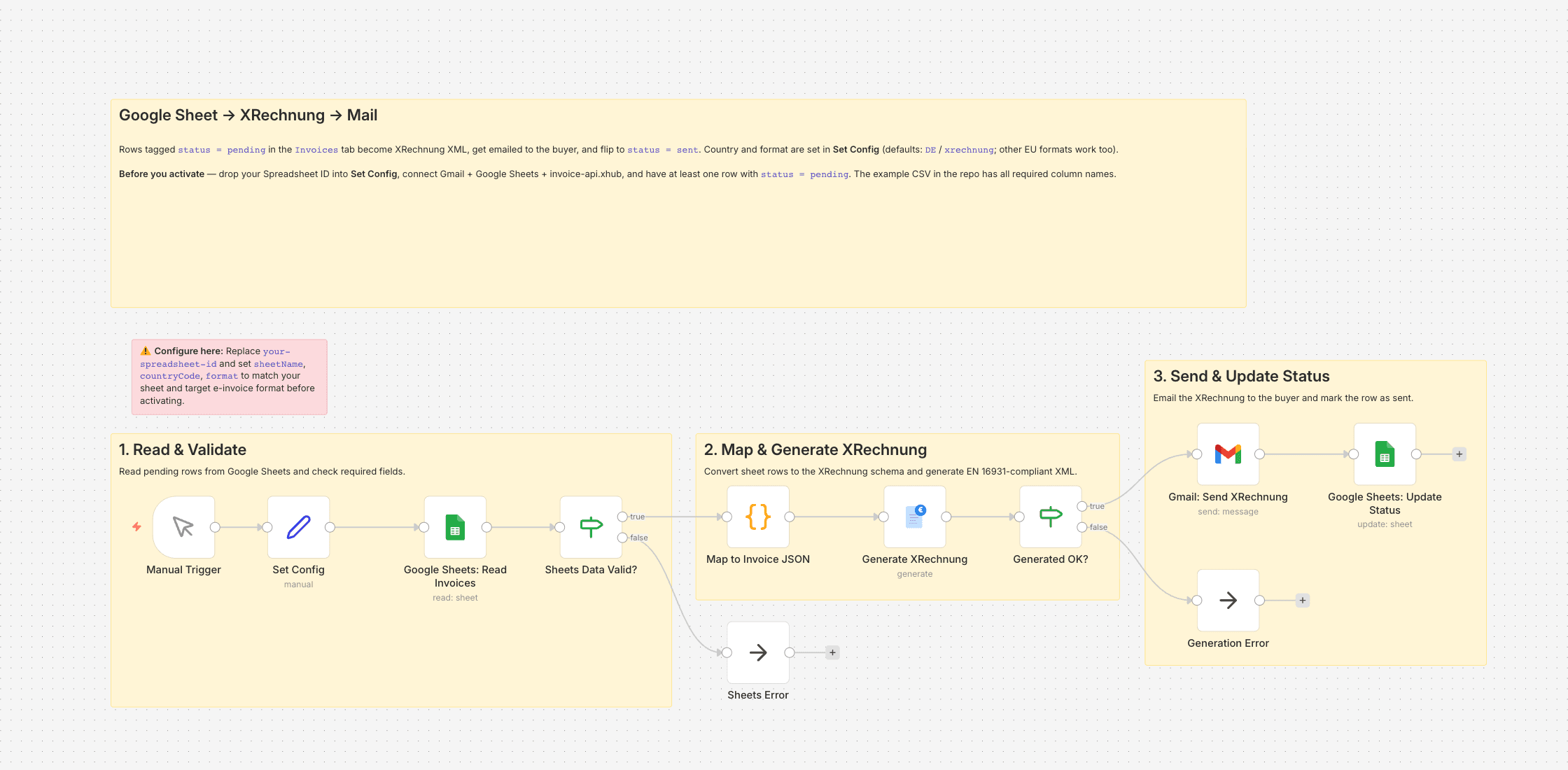

Turn a Google Sheet row into an XRechnung and email it

Since January 2025 our public-sector clients stopped accepting PDF invoices — they want XRechnung XML (EN 16931) or they don't pay. We're a four-person consultancy; I handle the admin side on top of my actual work, an…

10 min setupView template

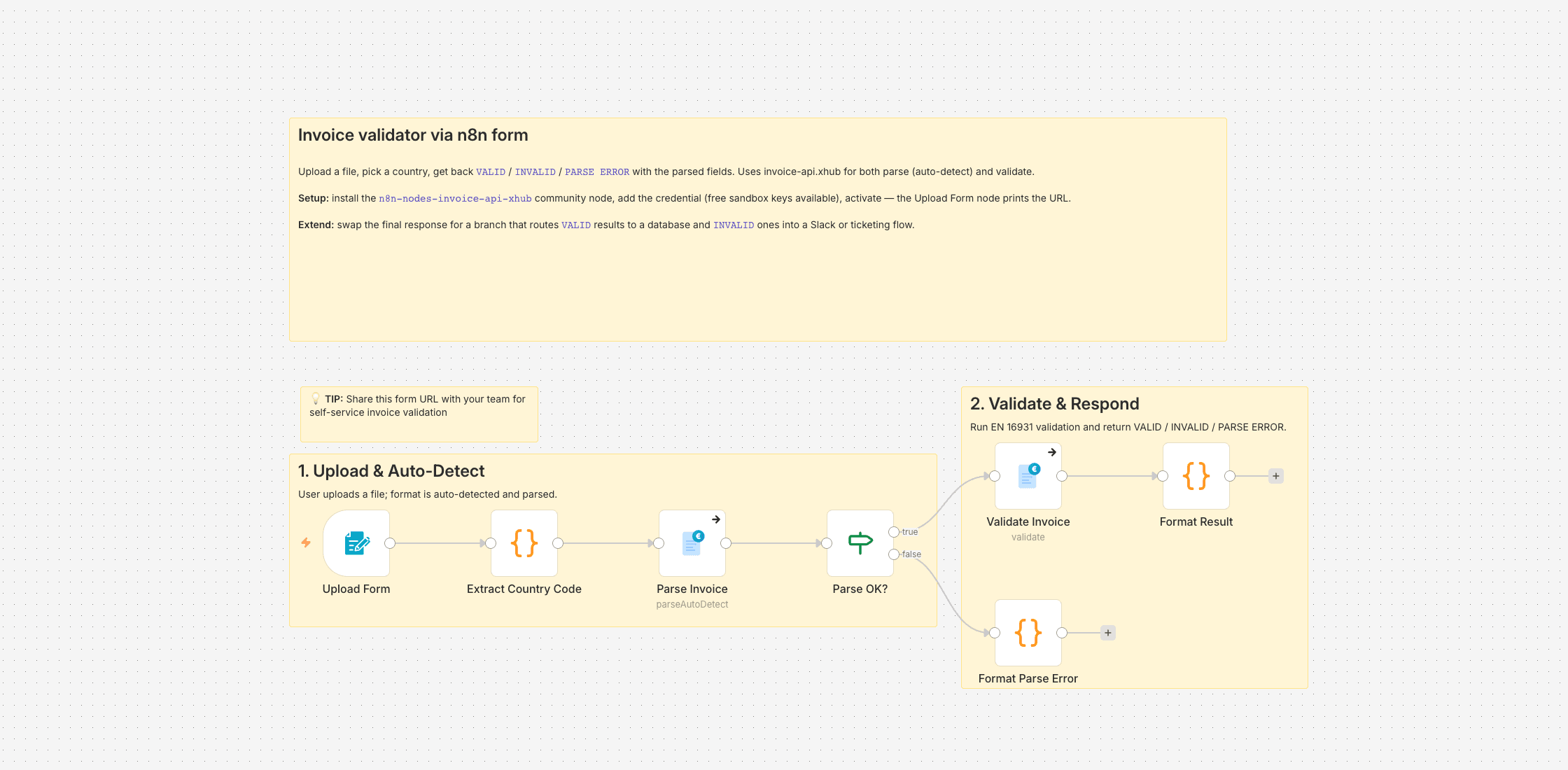

Self-service invoice validator (upload form)

I run n8n as the automation layer for a B2B online shop. Our suppliers send invoices in every shape we buy into — XRechnung XML, ZUGFeRD hybrids, plain PDFs. Before any downstream workflow (booking, reconciliation, pa…

3 min setupView template

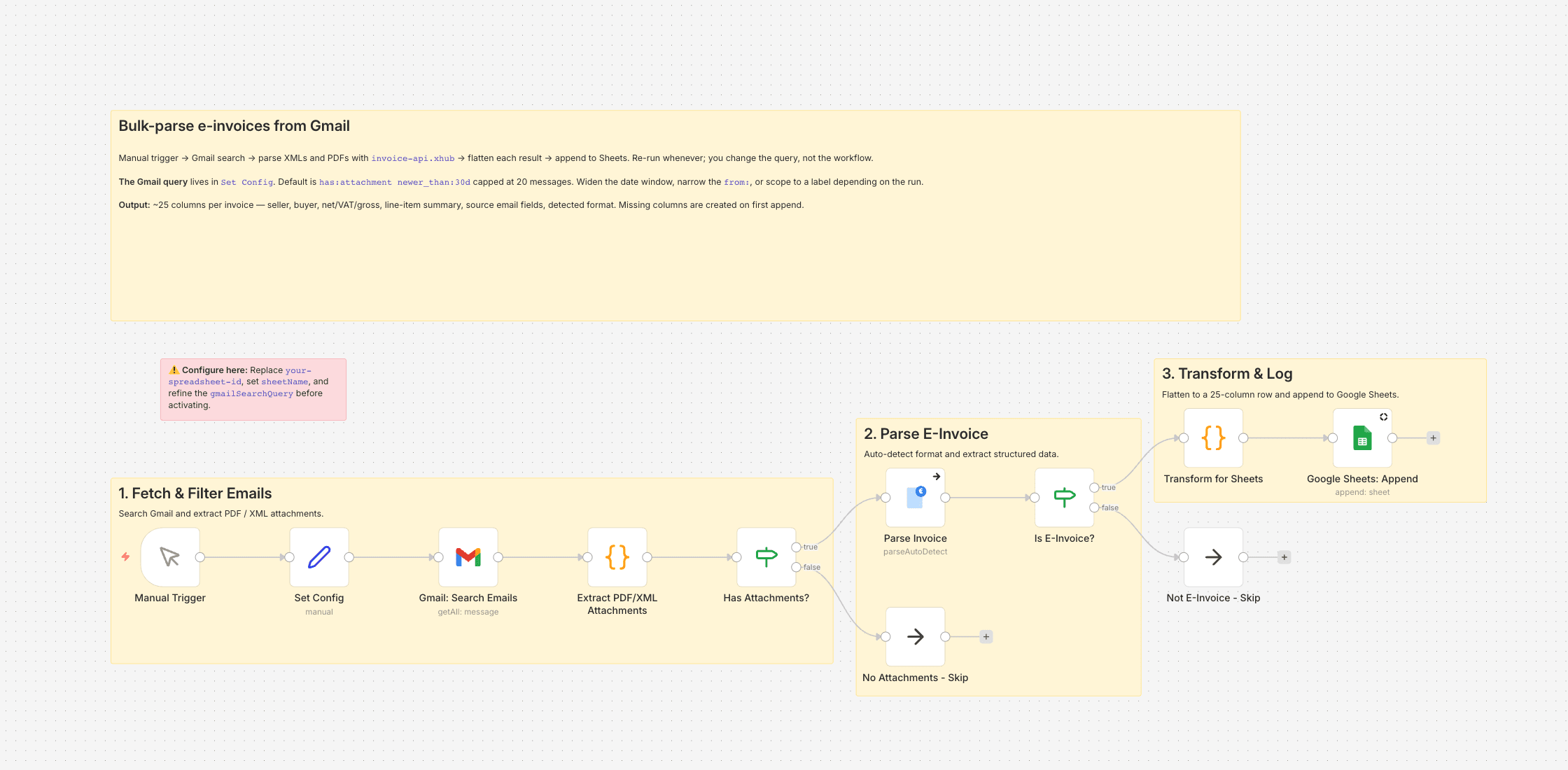

Bulk-parse inbound e-invoices from Gmail into a flat Google Sheet

Between Christmas and mid-January I was out for three weeks, and the supplier invoices for three of my clients had been stacking up in their inboxes — roughly a hundred and eighty attachments. I'm a freelance bookkeep…

5 min setupView template

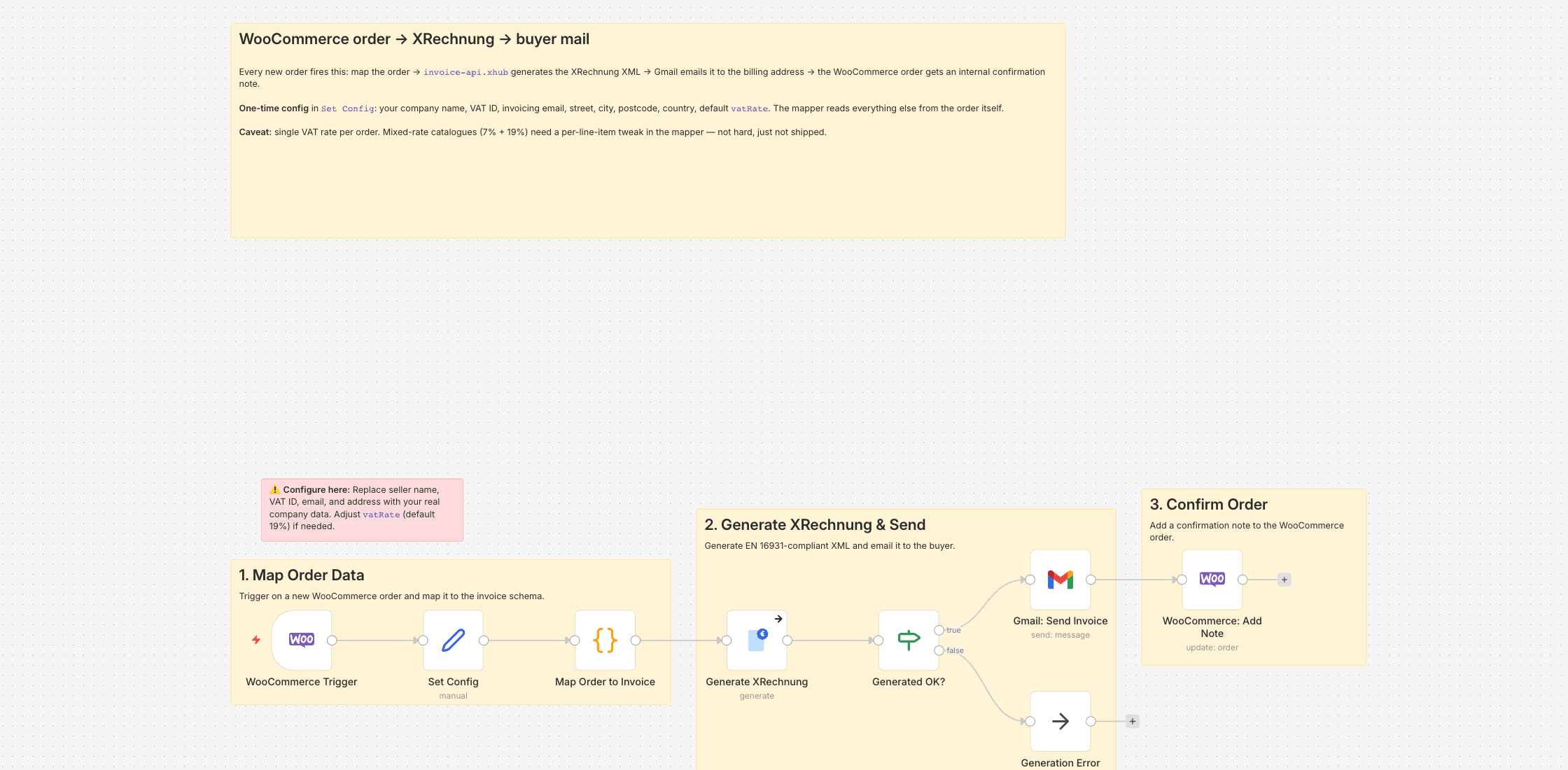

WooCommerce order → XRechnung → email the buyer, note the order

My shop sells lab consumables — pipette tips, reagent bottles, filter papers — mostly to university institutes, clinics, and the occasional research foundation. They're all publicly funded, and since early 2025 their …

10 min setupView template

Turn the PDF invoices your departments already write into ZUGFeRD or XRechnung

I run the back office of a facility services company with two operating departments. Both write their invoices in Word — the same templates for fifteen years, tab stops and all — export to PDF and mail them out. When …

20 min setupView template

Put shipment, site or project data on the invoice document without breaking the e-invoice

We invoice ocean freight. Our invoices have always carried the vessel name, voyage number, bill of lading and port of discharge — not out of nostalgia, but because our customer's accounts payable has no way of telling…

15 min setupView template

What is n8n?

n8n is an open-source workflow automation tool — like Zapier or Make.com, but self-hostable and with full code access. With over 400 built-in integrations and community nodes, n8n is ideal for automating e-invoice workflows in privacy-sensitive environments.

Self-Hosted

Run on your own servers. Your invoice data never leaves your infrastructure.

No-Code / Low-Code

Visual workflow editor with drag & drop. Code when you need it.

Open Source

Fair-code licensed. Inspect, modify and extend as needed.

Quick Start

Get Started in 3 Steps

1
Install Community Node
Settings → Community Nodes → Search for n8n-nodes-invoice-api-xhub
2
Set Up Credentials
Enter API Key and Base URL in Invoice-api.xhub credentials
3
Add Node to Workflow
Add Invoice-api.xhub node and select operation

bash

1# Installation via n8n UI:
2# Settings → Community Nodes → Install
3
4# Oder via npm (für selbst-gehostete Instanzen):
5cd ~/.n8n/custom
6npm install n8n-nodes-invoice-api-xhub
7
8# n8n neu starten
9# Der Node erscheint unter "Invoice-api.xhub" in der Node-Liste

Credentials Setup

Create new credentials for the Invoice-api.xhub node:

NameInvoice-api.xhub API

Any name for identification

API Keysk_test_xxxxxxxxxxxx

Test key (sk_test_*) or live key (sk_live_*)

Base URLhttps://service.invoice-api.xhub.io

Default API endpoint (pre-filled)

json

1// Credentials JSON Struktur
2{
3  "name": "Invoice-api.xhub API",
4  "type": "invoiceXhubApi",
5  "data": {
6    "apiKey": "sk_test_xxxxxxxxxxxxxxxxxxxx",
7    "baseUrl": "https://service.invoice-api.xhub.io"
8  }
9}
10
11// API Key Formate:
12// sk_test_* → Sandbox/Test-Umgebung
13// sk_live_* → Produktions-Umgebung
14
15// Den API Key findest du in der Console:
16// https://console.invoice-api.xhub.io

Node Operations

The Invoice-api.xhub node offers 5 main operations for e-invoice processing.

Generate

Create e-invoice from JSON

Parameters

countryCode(options)– Country code (de, at, ch, fr, it, ...)

format(options)– xrechnung, zugferd, facturx, fatturapa, ...

invoiceData(json)– Invoice data as a JSON object

outputBinary(boolean)– Return the document as binary (default: true)

binaryPropertyName(string)– Name of the binary property (default: data)

includeWarnings(boolean)– Include validation warnings

formatOptions(json)– Format-specific options (e.g. template, profile)

json

1// POST /api/v1/invoice/{countryCode}/{format}/generate
2{
3  "invoice": {
4    "invoiceNumber": "INV-2025-001",
5    "type": "invoice",
6    "issueDate": "2025-01-15",
7    "dueDate": "2025-02-14",
8    "seller": {
9      "name": "ACME GmbH",
10      "vatId": "DE123456789",
11      "street": "Hauptstraße 1",
12      "city": "Berlin",
13      "postalCode": "10115",
14      "countryCode": "DE"
15    },
16    "buyer": {
17      "name": "Customer AG",
18      "vatId": "DE987654321",
19      "street": "Musterweg 5",
20      "city": "München",
21      "postalCode": "80331",
22      "countryCode": "DE"
23    },
24    "countrySpecific": { "countryCode": "DE", "buyerReference": "BUYER-REF-001" },
25    "items": [{
26      "position": 1,
27      "description": "Beratung",
28      "quantity": 10,
29      "unit": "HUR",
30      "unitPrice": 150.00,
31      "taxRate": 19,
32      "netAmount": 1500.00,
33      "taxAmount": 285.00,
34      "grossAmount": 1785.00
35    }],
36    "currency": "EUR",
37    "subtotal": 1500.00,
38    "total": 1785.00,
39    "taxSummary": [{ "taxRate": 19, "netAmount": 1500.00, "taxAmount": 285.00 }],
40    "paymentTerms": { "dueDays": 30 }
41  }
42}
43
44// Response:
45{
46  "success": true,
47  "format": "xrechnung",
48  "filename": "INV-2025-001.xml",
49  "mimeType": "application/xml",
50  "hash": "8ae0d641dc2ea339602851ccd48f8adb0d0460873e20406b0ba1d7ff675917f3",
51  "data": "PD94bWwgdmVyc2lvbj0i..."
52}

Parse

Extract data from XML/PDF with known format

Parameters

countryCode(options)– Country code (de, at, ch, fr, it, ...)

format(options)– xrechnung, zugferd, facturx, fatturapa, ...

inputType(options)– binary (from the previous node) or base64

binaryPropertyName(string)– Name of the binary property (default: data)

base64Data(string)– Base64-encoded document (when inputType=base64)

json

1// POST /api/v1/invoice/de/xrechnung/parse
2// Request: application/json
3{
4  "data": "<base64-encoded XML or PDF>",
5  "filename": "rechnung.xml"
6}
7
8// Response:
9{
10  "success": true,
11  "format": "XRECHNUNG_UBL",
12  "hash": "8ae0d641dc2ea339602851ccd48f8adb0d0460873e20406b0ba1d7ff675917f3",
13  "invoice": {
14    "invoiceNumber": "INV-2025-001",
15    "type": "invoice",
16    "issueDate": "2025-01-15",
17    "dueDate": "2025-02-14",
18    "seller": { "name": "ACME GmbH", ... },
19    "buyer": { "name": "Customer AG", ... },
20    "items": [{ "position": 1, "description": "Beratung", ... }],
21    "currency": "EUR",
22    "subtotal": 1500.00,
23    "total": 1785.00
24  }
25}

Parse (Auto-Detect)

Automatic detection of country and format

Parameters

inputType(options)– binary (from the previous node) or base64

binaryPropertyName(string)– Name of the binary property (default: data)

base64Data(string)– Base64-encoded document (when inputType=base64)

json

1// POST /api/v1/invoice/parse
2// Request: application/json
3{
4  "data": "<base64-encoded XML or PDF>",
5  "filename": "rechnung.xml"
6}
7
8// Response:
9{
10  "success": true,
11  "hash": "8ae0d641dc2ea339602851ccd48f8adb0d0460873e20406b0ba1d7ff675917f3",
12  "invoice": {
13    "invoiceNumber": "INV-2025-001",
14    "issueDate": "2025-01-15",
15    ...
16  },
17  "detection": {
18    "format": "XRECHNUNG_UBL",
19    "formatVersion": "3.0.2",
20    "countryCode": "DE",
21    "confidence": 98,
22    "formatMethod": "CUSTOMIZATION_ID",
23    "countrySource": "DOCUMENT",
24    "isAmbiguous": false,
25    "alternativeCountries": []
26  }
27}

Validate

Validate against country-specific rules

Parameters

countryCode(options)– Country code (de, at, ch, fr, it, ...)

invoiceData(json)– Invoice data as a JSON object

failOnErrors(boolean)– Mark the node as failed on errors

failOnWarnings(boolean)– Mark the node as failed on warnings

json

1// POST /api/v1/invoice/{countryCode}/validate
2{
3  "invoice": {
4    "invoiceNumber": "INV-2025-001",
5    "type": "invoice",
6    "issueDate": "2025-01-15",
7    ...
8  }
9}
10
11// Response:
12{
13  "valid": true,
14  "errors": [],
15  "warnings": []
16}

Get Formats

Retrieve supported countries/formats

Parameters

scope(options)– all (every country) or country (a single country)

countryCode(options)– Country code (de, at, ch, fr, it, ...)

json

1// GET /api/v1/invoice/formats (scope: all)
2// GET /api/v1/invoice/{countryCode}/formats (scope: country)
3
4// Response (scope: all) — DE and AT of 37 countries:
5{
6  "countries": [
7    {
8      "code": "DE",
9      "name": "Germany",
10      "label": "Germany (DE)",
11      "formats": [
12        "pdf",
13        "xrechnung",
14        "zugferd"
15      ],
16      "formatDetails": [
17        {
18          "code": "pdf",
19          "label": "PDF",
20          "kind": "pdf"
21        },
22        {
23          "code": "zugferd",
24          "label": "ZUGFeRD 2.3/2.4/2.5",
25          "kind": "einvoice"
26        },
27        {
28          "code": "xrechnung",
29          "label": "XRechnung 3.0/3.0.2",
30          "kind": "einvoice"
31        }
32      ]
33    },
34    {
35      "code": "AT",
36      "name": "Austria",
37      "label": "Austria (AT)",
38      "formats": [
39        "pdf",
40        "ebinterface",
41        "ubl"
42      ],
43      "formatDetails": [
44        {
45          "code": "pdf",
46          "label": "PDF",
47          "kind": "pdf"
48        },
49        {
50          "code": "ebinterface",
51          "label": "ebInterface",
52          "kind": "einvoice"
53        },
54        {
55          "code": "ubl",
56          "label": "UBL (Peppol BIS 3.0)",
57          "kind": "einvoice"
58        }
59      ]
60    }
61  ]
62}

Why n8n?

Self-Hosted

Run n8n on your own infrastructure

Open Source

Fully open source under Fair-Code license

400+ Integrations

Native nodes for the most popular tools

Code-Capable

JavaScript/Python code directly in workflows

n8n vs Zapier vs Make vs Direct API

How does the n8n integration compare to other automation options?

Feature	n8n + Invoice-api.xhub	Zapier	Make.com	Direct API
Native Invoice Node		—	—
Self-Hosted Option		—	—
No-Code Workflows				—
E-Invoice Formats	14	14	14	14
Countries	37	37	37	37
Open Source		—	—	—
Automation Cost	Free (self-hosted)	From $20/mo	From $20/mo	Free (self-hosted)

Multi-Agent Architecture

For complex scenarios: Build a system of specialized agents that work together.

Webhook

Receive invoice

Coordinator Agent

Analyze & route requests

Validation

Agent

Generation

Agent

Parsing

Agent

Error Handler Agent

Error diagnosis & escalation

Coordinator Agent

Receives requests and routes them to the appropriate specialized agent

Validation Agent

Validates invoices against official XRechnung/ZUGFeRD schemas

Generation Agent

Creates compliant e-invoices from JSON data

Error Handler Agent

Analyzes errors, attempts auto-fixes, or escalates to humans

Supported Formats

37 countries with various e-invoice formats are supported.

Fully supportedPartially supported

AUAustraliaUBL (EN 16931)
ATAustriaebInterface · UBL (EN 16931)
BEBelgiumUBL (EN 16931) · Factur-X
BGBulgariaUBL (EN 16931)
CACanada
CYCyprusUBL (EN 16931)
CZCzechiaISDOC · UBL (EN 16931)
DKDenmarkUBL (EN 16931)
EEEstoniaUBL (EN 16931)
FIFinlandUBL (EN 16931)
FRFranceFactur-X · UBL (EN 16931)
DEGermanyXRechnung · ZUGFeRD
GRGreecemyDATA
HUHungaryNAV Online Számla XML
ISIcelandUBL (EN 16931)
IEIrelandUBL (EN 16931)
ITItalyFatturaPA
JPJapanUBL (EN 16931)
LVLatviaUBL (EN 16931)
LILiechtensteinQR-Bill · UBL (EN 16931)
LTLithuaniaUBL (EN 16931)
LULuxembourgUBL (EN 16931)
MTMaltaUBL (EN 16931)
NLNetherlandsUBL (EN 16931)
NZNew ZealandUBL (EN 16931)
NONorwayUBL (EN 16931)
OMOmanUBL (EN 16931)
PLPolandUBL (EN 16931) · Peppol BIS UBL
RORomaniaUBL (EN 16931) · Peppol BIS UBL
SKSlovakiaUBL (EN 16931) · Peppol BIS UBL
SISloveniaUBL (EN 16931)
ESSpainFacturae · UBL (EN 16931)
SESwedenUBL (EN 16931)
CHSwitzerlandQR-Bill · ZUGFeRD
AEUnited Arab EmiratesUBL (EN 16931)
GBUnited KingdomUBL (EN 16931)
USUnited States

Troubleshooting

Common problems and their solutions.

Get Started Now

Install the community node and automate your e-invoice workflows.

GitHub Repository n8n Community Nodes Docs n8n.io

What works with n8n

Supported

Community node for generation, validation and parsing
Self-hostable — invoice data leaves your instance only for the API call
Any trigger: webhook, database, email, cron
Ready-made templates for recurring workflows

Limits

Peppol dispatch is not available yet (planned 2027)
The API sends no webhooks — the workflow is triggered by your own system, not by us
Error handling and retry strategy belong in your workflow, not in the API

What it costs for your workflow

A n8n setup producing around 2,000 invoices per month fits the Starter plan at 23 € per month billed monthly, or 18 € per month billed annually.

All prices net, plus VAT · 20 % off when billed annually · Free tier without a credit card

All plans

n8n — frequently asked

Does this work on a self-hosted n8n instance?

Yes, and that is the common case. The node calls the API over HTTPS; invoice data leaves your instance only for that single call and is not stored permanently.

How do I handle failed calls?

The validator names the rule that failed with its code (e.g. BR-DE-01). The usual shape is a retry branch for network errors and a separate branch for validation errors that flags the order for manual review — the latter do not fix themselves by retrying.

Does every validation count against my quota?

Generated invoices are API calls. Budget for validation runs during development if you are testing on the free tier.

Your question about n8n isn't listed? Ask directly

For agencies

If you build n8n shops for clients: this page is the explanation you can hand them. Get in touch for volume terms and joint projects.

Start free Talk to us

n8n Integration

Automate e-invoicing with n8n

Community Node Now Available

Ready-Made Workflow Templates

Archive inbound e-invoices from Gmail to Drive (with a searchable sheet log)

Turn a Google Sheet row into an XRechnung and email it

Self-service invoice validator (upload form)

Bulk-parse inbound e-invoices from Gmail into a flat Google Sheet

WooCommerce order → XRechnung → email the buyer, note the order

Turn the PDF invoices your departments already write into ZUGFeRD or XRechnung

Put shipment, site or project data on the invoice document without breaking the e-invoice

What is n8n?

Self-Hosted

No-Code / Low-Code

Open Source

Quick Start

Get Started in 3 Steps

Credentials Setup

Node Operations

Generate

Parameters

Parse

Parameters

Parse (Auto-Detect)

Parameters

Validate

Parameters

Get Formats

Parameters

Why n8n?

Self-Hosted

Open Source

400+ Integrations

Code-Capable

n8n vs Zapier vs Make vs Direct API

Multi-Agent Architecture

Coordinator Agent

Validation Agent

Generation Agent

Error Handler Agent

Supported Formats

Troubleshooting

Invalid API Key

Validation Error: VAT ID

Binary data not found

Timeout with large files

Format not supported

Get Started Now

Related Documentation

Creator API

Parser API

Validator API

Pricing

What works with n8n

Supported

Limits

What it costs for your workflow

n8n — frequently asked

Does this work on a self-hosted n8n instance?

How do I handle failed calls?

Does every validation count against my quota?

For agencies
