Cookbook

Recipes for invoice templates

Copy-ready BlockTemplate snippets for recurring tasks — from SEPA QR codes to dynamic VAT rows. Drop them into the body.blocks array (or header / footer).

SEPA giro code (QR) for bank transfers

A qrcode block with EPC-069-12 compliant content sourced from the nested seller.bankAccount (iban is required there — and mandatory for ZUGFeRD/XRechnung with SEPA transfer anyway). Customers scan it in their banking app and transfer details are pre-filled.

json

1{
2  "type": "qrcode",
3  "condition": "{{seller.bankAccount.iban}}",
4  "data": {
5    "size": 120,
6    "alignment": "right",
7    "eccLevel": "M",
8    "content": "BCD\n002\n1\nSCT\n{{seller.bankAccount.bic}}\n{{seller.bankAccount.accountHolder}}\n{{seller.bankAccount.iban}}\nEUR{{total}}\n\n{{invoiceNumber}}\n\nRechnung {{invoiceNumber}}"
9  }
10}

Article-number column in the line-items table

An extra column for the article / service number from items[].articleNumber. When the field is empty, the cell simply stays blank.

json

1{
2  "type": "table",
3  "data": {
4    "dataSource": "{{items}}",
5    "columns": [
6      { "field": "articleNumber", "header": "Art. No.",    "width": "15%" },
7      { "field": "description",   "header": "Description", "width": "*" },
8      { "field": "quantity",      "header": "Qty",         "width": "10%", "align": "center" },
9      { "field": "unitPrice",     "header": "Unit",        "width": "15%", "align": "right", "format": "currency" },
10      { "field": "netAmount",     "header": "Net",         "width": "15%", "align": "right", "format": "currency" }
11    ]
12  }
13}

Logo on the right, company on the left in the header

Two-column header with the sender address on the left and the logo on the right — repeatOnAllPages turns it into a letterhead. The logo is embedded via a static URL or a Base64 data URI.

json

1{
2  "type": "table",
3  "data": {
4    "dataSource": "{{items}}",
5    "columns": [
6      { "field": "articleNumber", "header": "Artikel-Nr.", "width": "15%" },
7      { "field": "description",   "header": "Beschreibung", "width": "*" },
8      { "field": "quantity",      "header": "Menge",        "width": "10%", "align": "center" },
9      { "field": "unitPrice",     "header": "Einzel",       "width": "15%", "align": "right", "format": "currency" },
10      { "field": "netAmount",     "header": "Netto",        "width": "15%", "align": "right", "format": "currency" }
11    ]
12  }
13}

Page number in the footer

The runtime placeholders {{pageNumber}} and {{pageCount}} provide the current page and total page count. Combine with repeatOnAllPages.

json

1{
2  "footer": {
3    "repeatOnAllPages": true,
4    "blocks": [
5      { "type": "line", "data": { "thickness": 0.5, "color": { "token": "lineColor" } } },
6      { "type": "text", "data": {
7          "content": "Page {{pageNumber}} of {{pageCount}}  •  Invoice {{invoiceNumber}}",
8          "fontSize": 8,
9          "alignment": "center",
10          "color": { "token": "mutedColor" }
11      }}
12    ]
13  }
14}

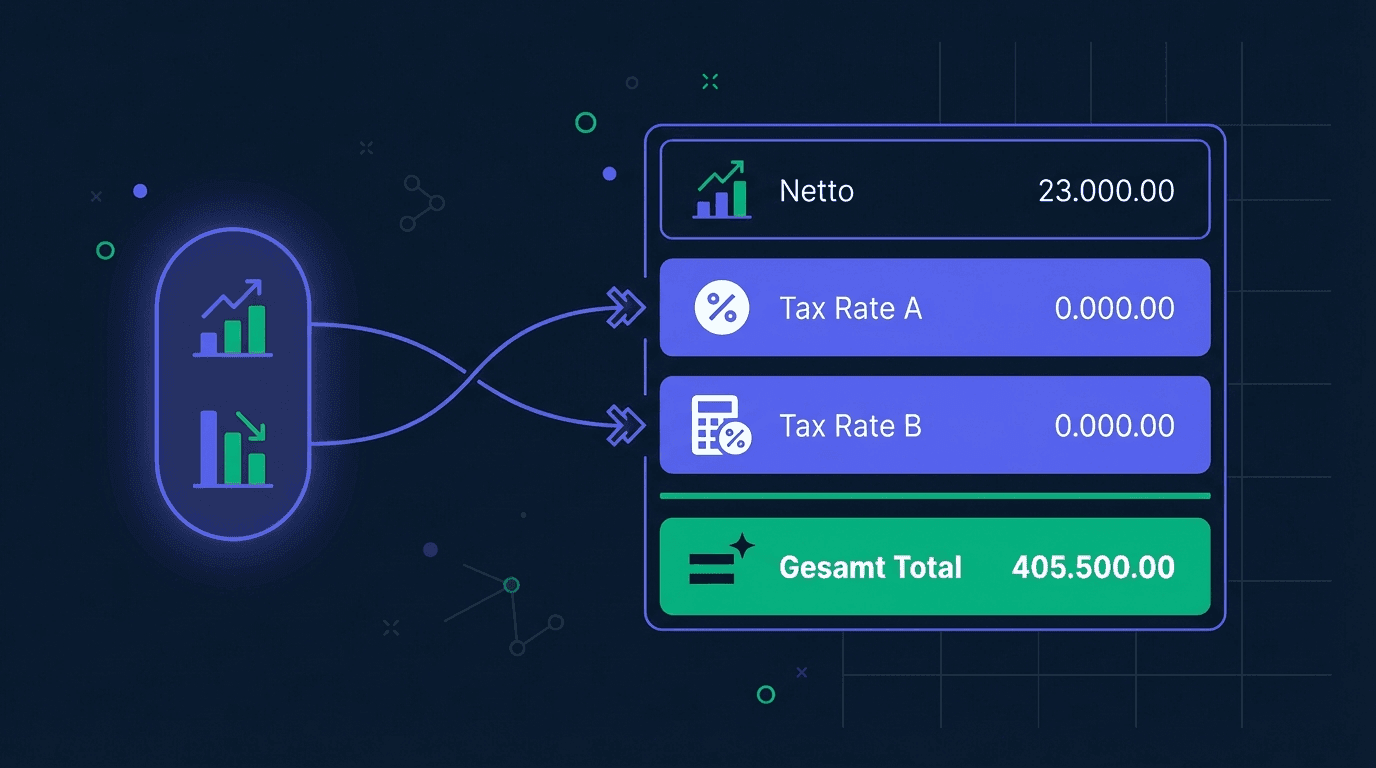

Dynamic VAT rows from taxSummary

One summary row per tax rate — no hard-wired 19% logic. Works for mixed invoices with 7%, 19%, reverse charge (AE) or exempt (Z/E).

json

1{
2  "type": "summary",
3  "data": {
4    "alignment": "right",
5    "labelBold": true,
6    "headerRows": [
7      { "label": "Net total", "value": "{{subtotal}}", "valueFormat": "currency" }
8    ],
9    "dynamicRows": {
10      "dataSource": "{{taxSummary}}",
11      "valueField": "taxAmount",
12      "valueFormat": "currency",
13      "labelTemplate": "VAT {{taxRate}}% ({{taxCategoryCode}})"
14    },
15    "footerRows": [
16      { "label": "Grand total", "value": "{{total}}", "bold": true, "valueFormat": "currency", "separator": true }
17    ]
18  }
19}

Payment terms with early-payment discount

Conditional block using paymentTerms.earlyPaymentDiscount (nested). Renders only when discountPercent is set.

json

1{
2  "type": "text",
3  "condition": "{{paymentTerms.earlyPaymentDiscount.discountPercent}}",
4  "data": {
5    "content": "Payable by {{dueDate}}. Pay within {{paymentTerms.earlyPaymentDiscount.days}} days and get a {{paymentTerms.earlyPaymentDiscount.discountPercent}}% early-payment discount.",
6    "fontSize": 9,
7    "margin": [0, 12, 0, 0]
8  }
9}

Small-business note (§ 19 UStG)

countrySpecific.isKleinunternehmer is a boolean flag for DE invoices. The statutory note is rendered only when the flag is set.

json

1{
2  "type": "text",
3  "condition": "{{countrySpecific.isKleinunternehmer}}",
4  "data": {
5    "content": "Pursuant to § 19 UStG, no VAT is charged (German small-business rule).",
6    "italics": true,
7    "fontSize": 9,
8    "margin": [0, 12, 0, 0]
9  }
10}

B2G: Leitweg-ID in the header

For invoices to public-sector buyers (DE). Leitweg-ID and buyer reference live under countrySpecific. Payload note: countrySpecific requires the discriminator countryCode: "DE", and EN 16931 expects at least one of leitwegId or buyerReference.

json

1{
2  "type": "keyvalue",
3  "condition": "{{countrySpecific.leitwegId}}",
4  "data": {
5    "layout": "horizontal",
6    "labelWidth": 120,
7    "labelBold": true,
8    "items": [
9      { "label": "Leitweg-ID",         "value": "{{countrySpecific.leitwegId}}" },
10      { "label": "Buyer reference",    "value": "{{countrySpecific.buyerReference}}", "optionalMode": "anyEmpty" }
11    ]
12  }
13}
